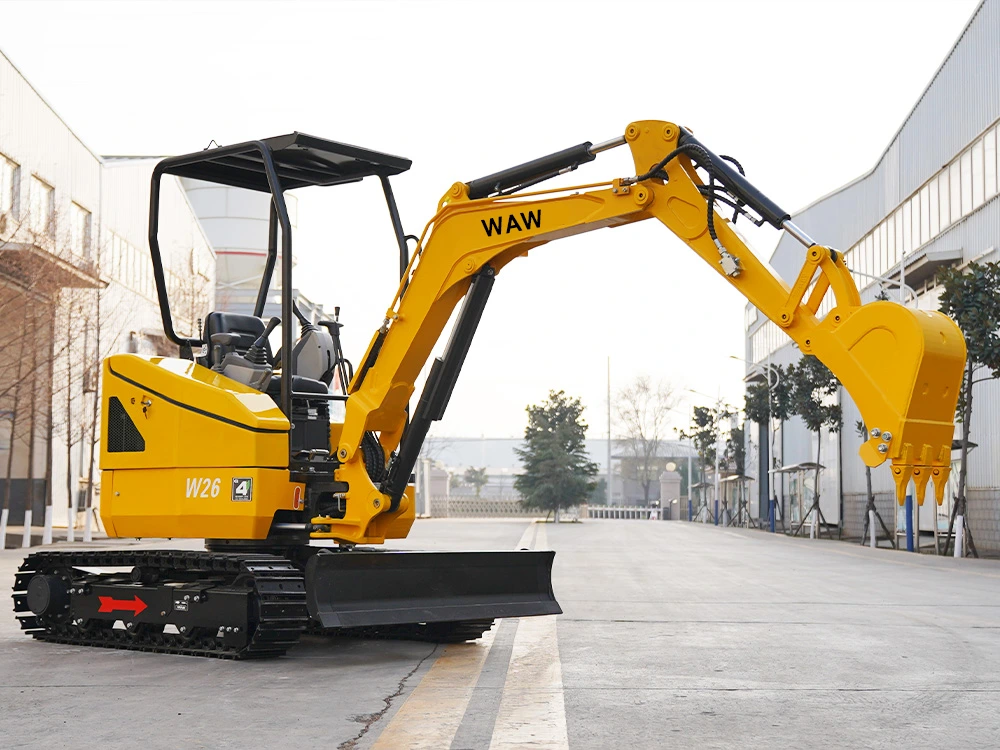

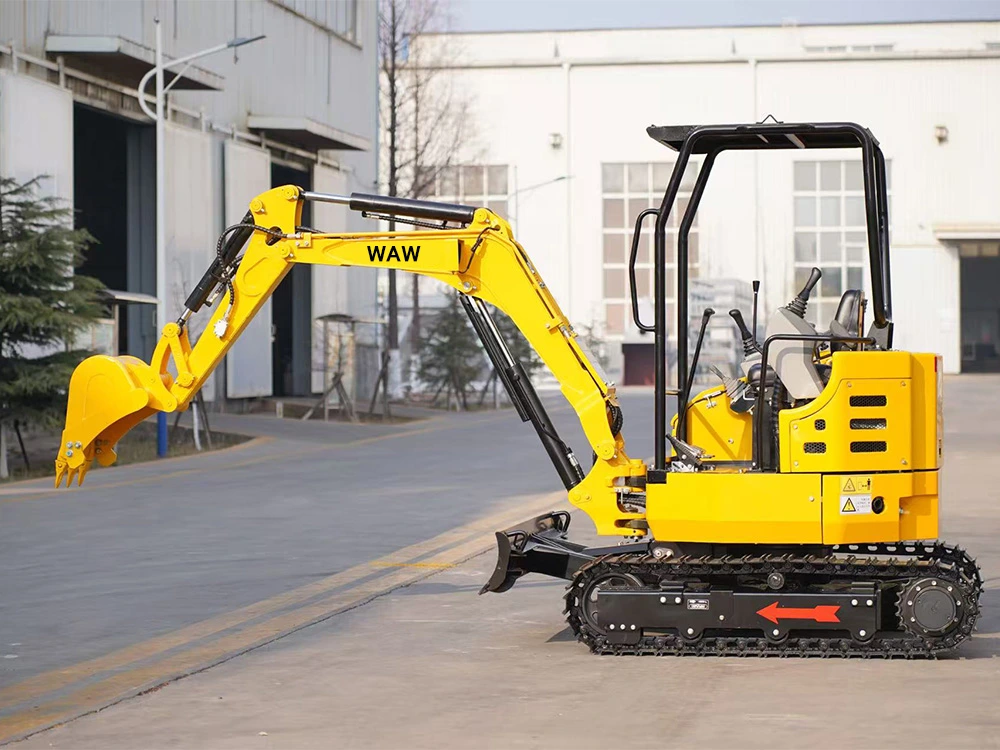

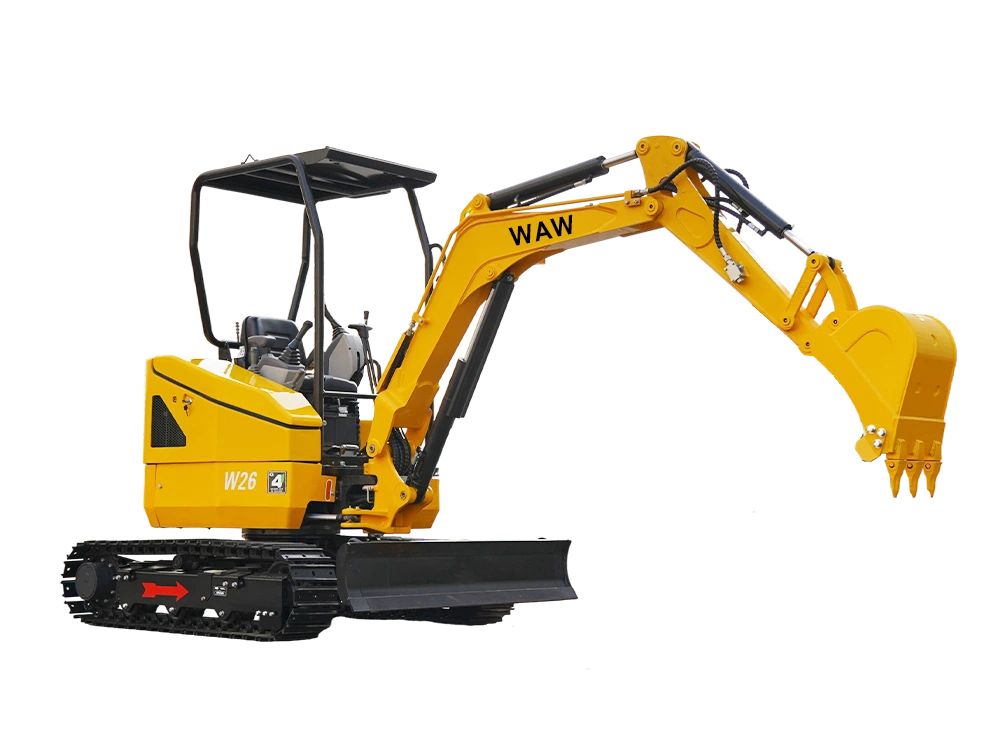

MINI EXCAVATOR W26

W26

Mobility: Compact size allows for easy operation in tight spaces
Versatility: From trenching to lifting heavy loads
Cost-effectiveness: Low operating costs and fuel consumption
Reduced environmental impact: Low emissions and noise levels
Easy to transport: Lightweight design facilitates quick relocation and minimizes downtime
Equipped with a GPS system to track location and operating status at any time

Description

  • Maximum digging force

    18.4 kN
  • Maximum digging radius

    4,120 mm
  • Maximum digging depth

    2,120 mm
  • Ground clearance

    1,300 mm



Configuration Parameter Table



Model Number Nuit W26
Bucket capacity CM 0.054
Standard bucket width:with/without side teeth MM 450/400
Operating weight KG 2,420
Body size Total length MM 3,910
Full height MM 2,370
Overall width MM 1,300/1,500
Minimum ground clearance MM 185
Engine Model number   Yanmar3TNV80F
Total displacement L 1.267
Rated output power Power kw/rpm 15.2kw/2500rpm
Mining
performance
Maxirmum excavation herght MM 3,945
Maximum discharge height MM 2,660
Maximum digging depth MM 2,120
Maximum vertical digging depth MM 1,900
Maximum excavation radius MM 4,120
Large arm offset:(left/right) MM 620/590
Minimum front turning radius MM 1,850(1,430)
Minimum turning radius of the rear MM 710
Maximum digging force Kilonewtons 18.4(1,880)
Caterpillar
belt

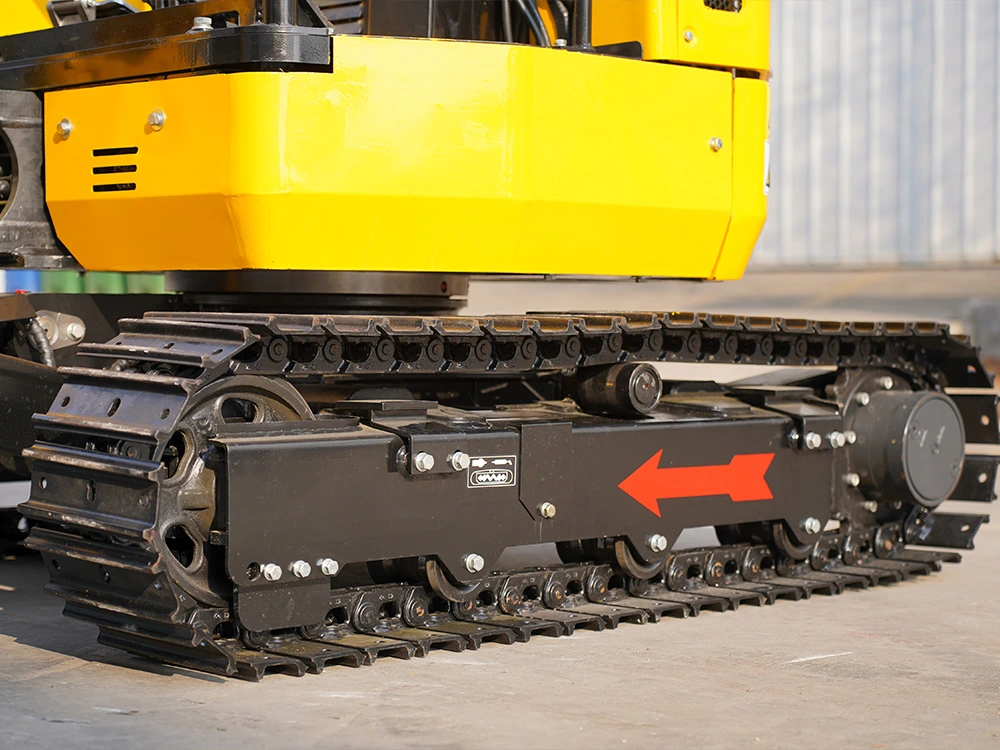

Tracktype   Iron track
Track width MM 250
Walking part Ttack length MM 1,860
Wheel pitch MM 1,475
Track center distance MM 1,050/1,250
Travel speed(low/high speed) Km/h 2.2/3.7
Climbing ability Angle 30
Turning speed(RPM)   8.5
Dozer plate Dozer plate MM 1,300/1,500
Dodging plate(height) MM 292
Lift distance(GL up/down) MM 260/325
Hydraulic pump type   Plunger Pump
Rotary motor type   Plunger motor
Travel motor type   2speed plunger hydraulic motor
Fuel tank capacity L 28

Features

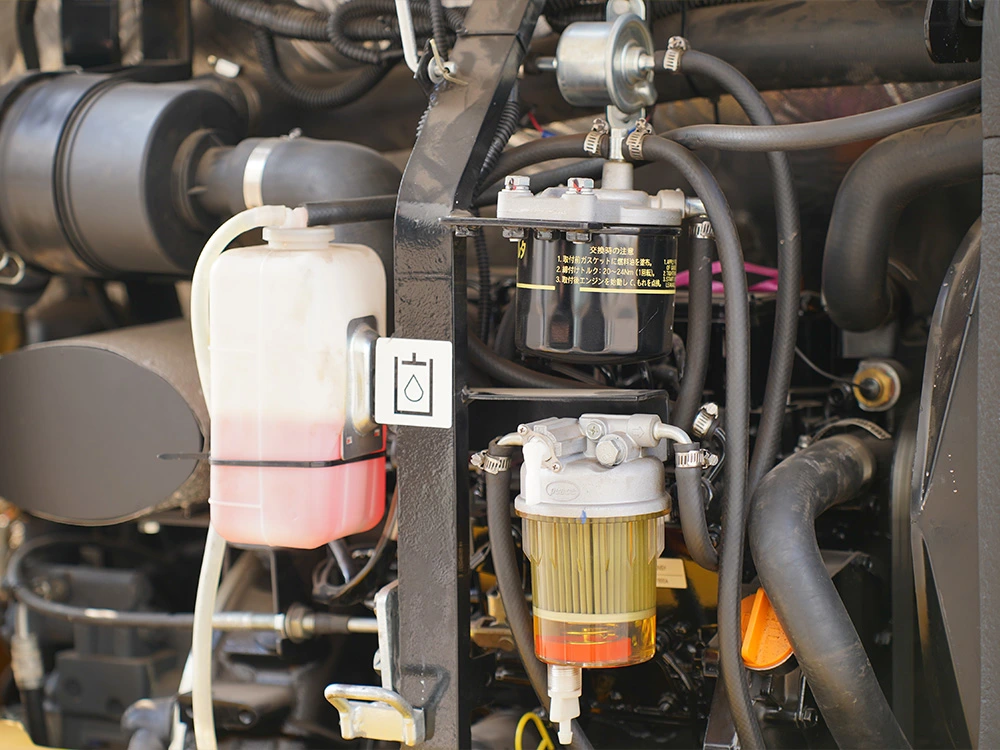

Engine

  • Imported from Japan, the Yanmar engine offers excellent fuel economy, high power output, and worry-free after-sales service, with a one-year warranty on core components;



Hydraulic System

  • An innovative three-pump system, based on sophisticated, near-perfect matching technology between the engine and hydraulic system, increases power output, improves operational efficiency, and reduces fuel consumption



Product Advantages

  • Upgraded track width to 250 mm, improving stability by 8%. Upgraded dozer blade with a new structure, featuring a taller and wider blade for more convenient and efficient construction. Tail-less counterweight design offers greater flexibility and adapts to confined spaces.

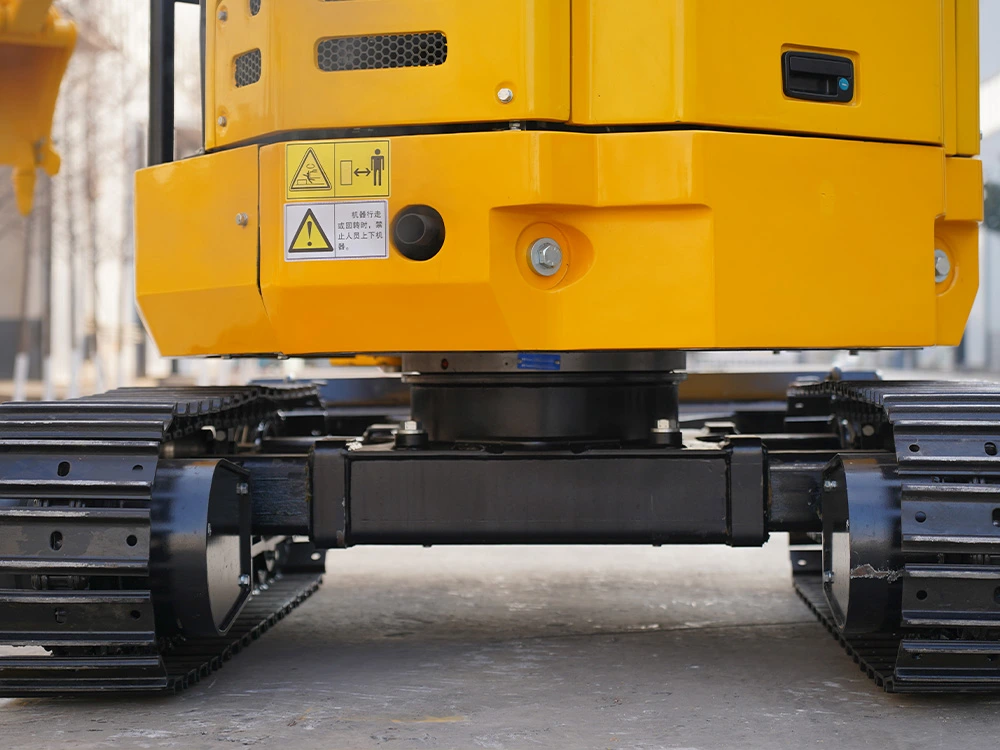

Chassis Telescoping Function

  • Adjustable frame: 1,300 mm when retracted and 1,500 mm when extended.



Overall Advantages

  • Maneuverability: Compact dimensions allow for easy operation in confined spaces

  • Versatility: From trenching to lifting heavy loads

  • Cost-effectiveness: Low operating costs and fuel consumption

  • Reduced environmental impact: Lower emissions and noise levels

  • Easy transport: Lightweight design facilitates site transfers and minimizes downtime

  • Equipped with a GPS system to monitor location and operational status at any time



设备图纸

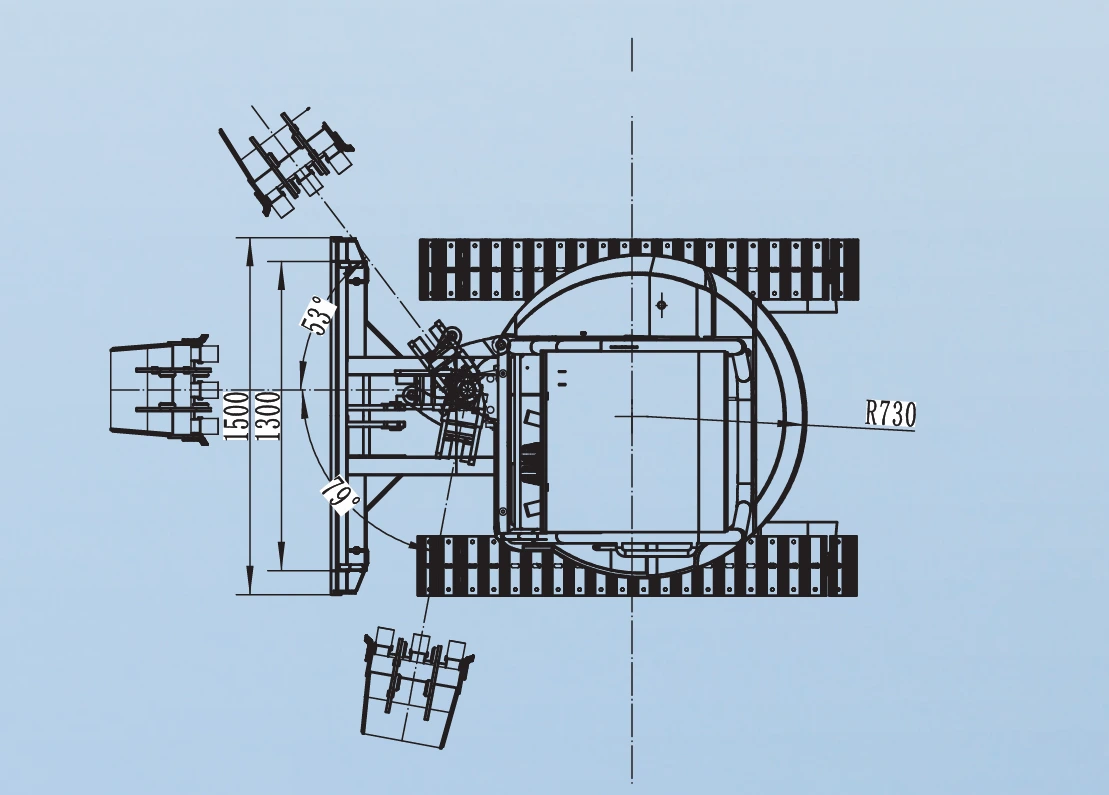

  • Scope of Work Diagram

    Scope of Work Diagram

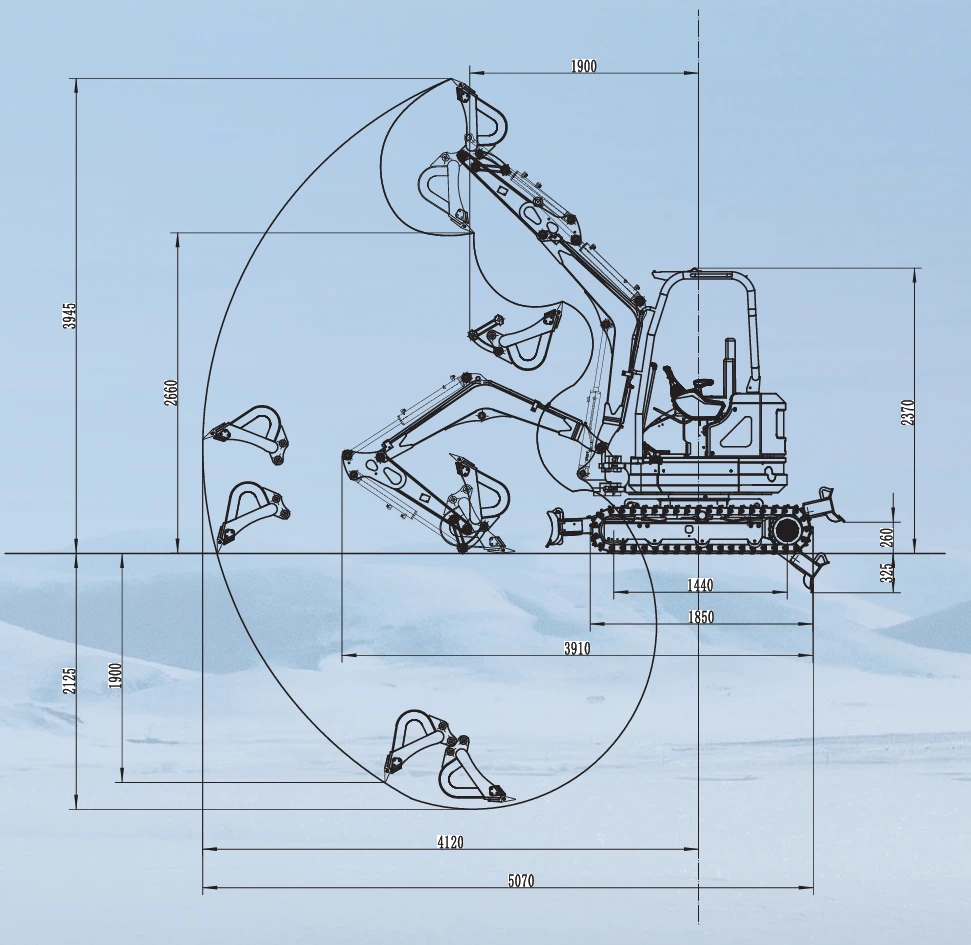

  • Outline Dimension Drawing

    Outline Dimension Drawing



常见问题

In what scenarios are your mini excavators primarily used?

They are suitable for indoor renovation and demolition, old building renovation, landscaping, rural roads, pipeline laying, agricultural water conservancy, greenhouse operations, emergency dredging and rescue, and other projects involving confined spaces and small-scale construction.

How should I choose between the 18, 26, and 30 models?

18-series: The smallest model, ideal for precision work in extremely confined spaces such as indoors, stairwells, and elevator shafts.
26-series: Versatile for both indoor and outdoor use, offering excellent value for money; it is the workhorse model for renovation, landscaping, and small-scale projects.
30-series: More powerful, suitable for small-scale earthwork, foundation construction, road maintenance, and similar projects.

Will the machine damage walls or furniture during operation?

Featuring a zero-tail swing design, the swing radius does not extend beyond the machine’s body. Combined with precise controls, this minimizes the risk of colliding with walls, structures, or furniture.

Can a single excavator perform multiple tasks?

Yes. It can be equipped with attachments such as buckets, hydraulic breakers, dredging blades, and dozer blades to perform multiple processes including excavation, demolition, dredging, grading, and material removal—making it a versatile all-in-one machine.

Is it easy to transport and relocate?

It is compact and lightweight, so it can be transported using a small truck or pickup. Relocation is flexible and cost-effective, allowing for rapid deployment in emergency situations.

Is it difficult to operate, and is it easy to learn?

Operation is simple and intuitive, making it easy to get started. Operators can be on the job after minimal training, allowing for flexible scheduling to meet project deadlines.
