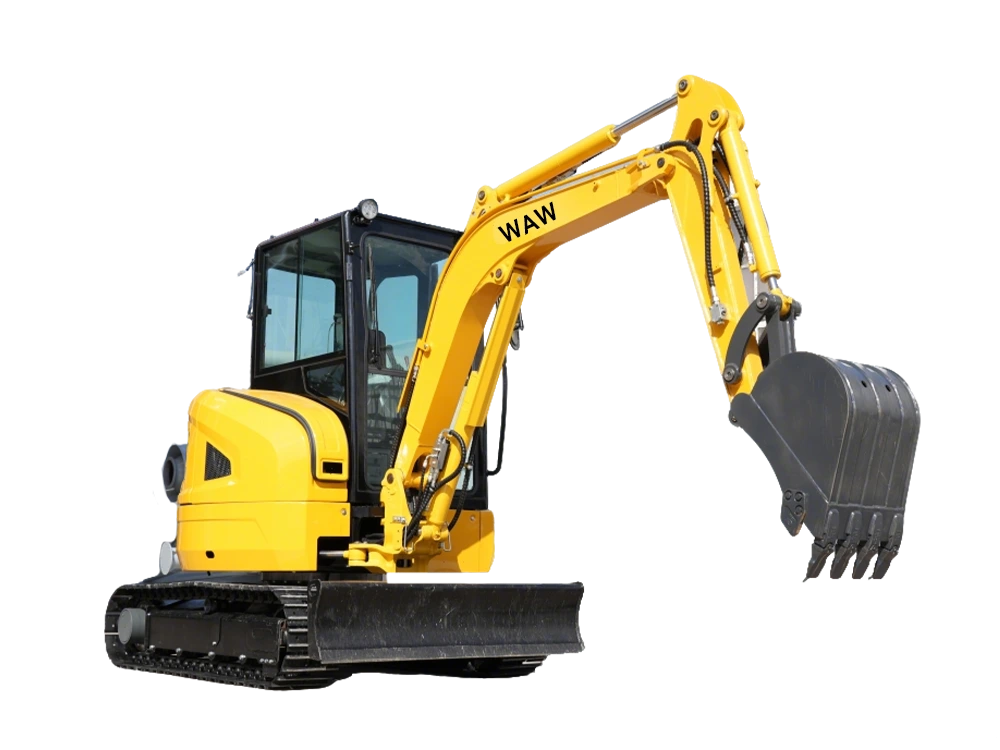

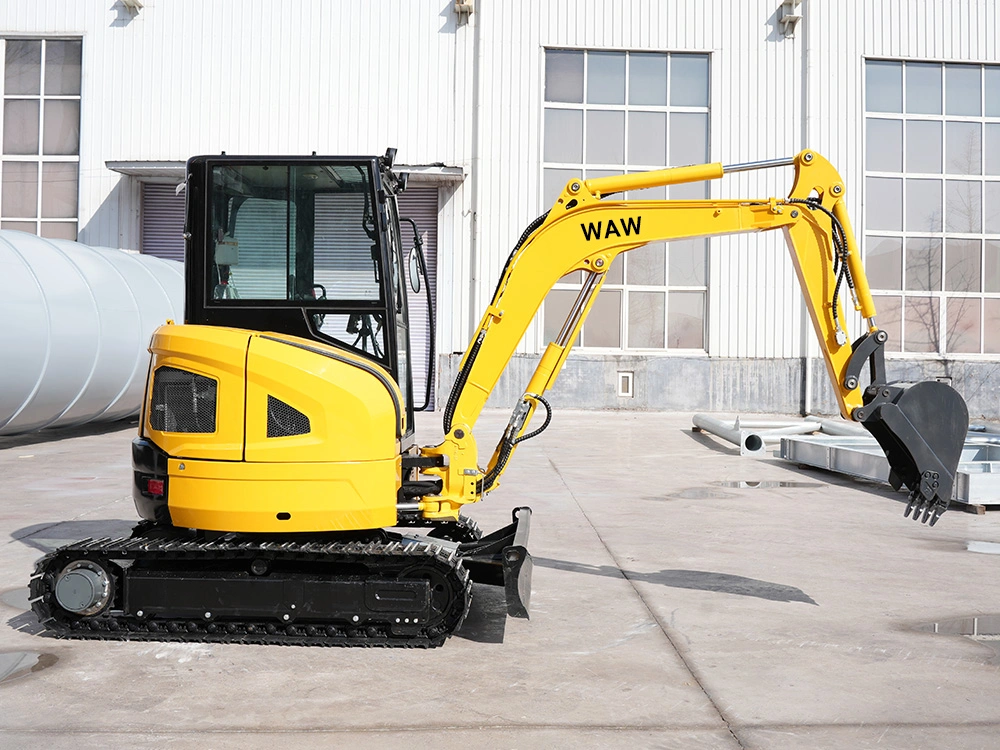

MINI EXCAVATOR W30

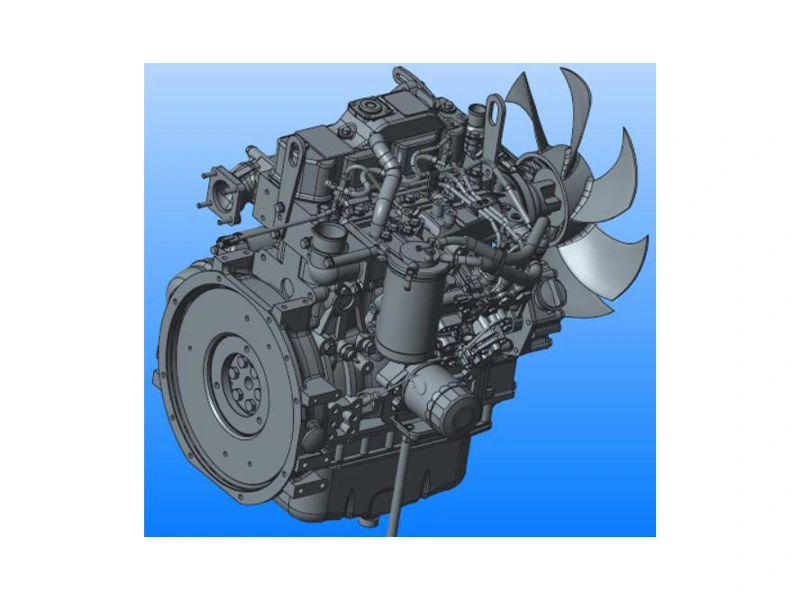

• Yanmar 3TNV88,

• 22.2 kW/2200 rpm.

• China IV emission standards

• High power and fuel efficiency

• Electronic 10-speed precise throttle control

• Simple and convenient operation

• Closed-loop load-sensing hydraulic system,

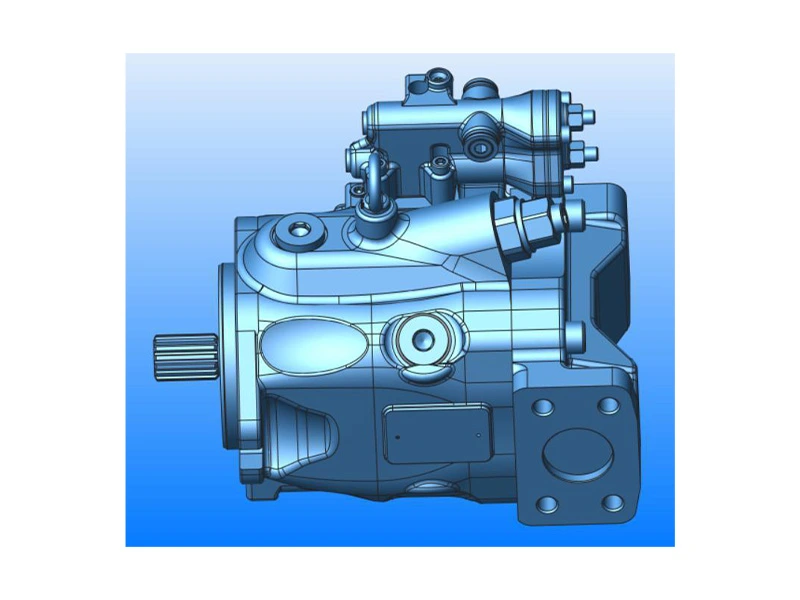

• Hengli load-sensing variable displacement piston pump

• Single pump controls all machine functions

• Highly efficient and energy-saving system

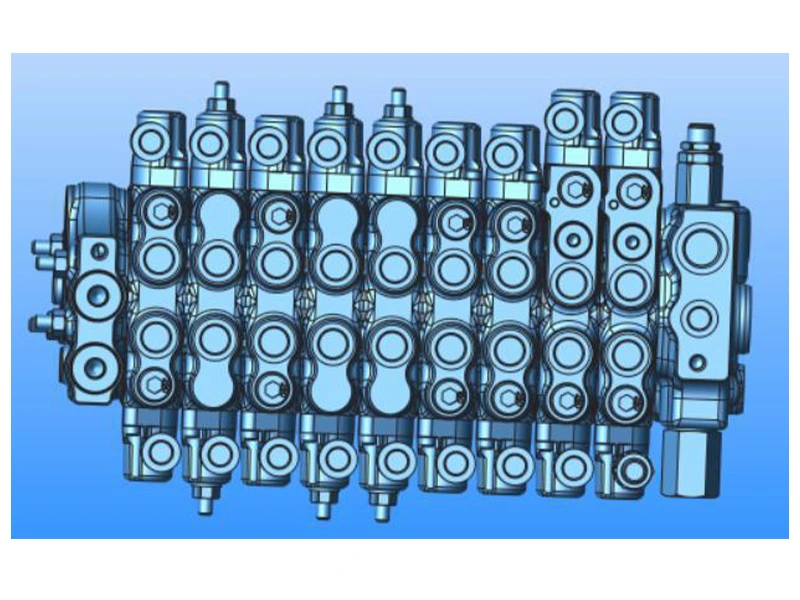

• Closed-loop load-sensing main control valve

• 9-way spool valve with load-sensing pilot control

• Highly efficient and energy-saving system

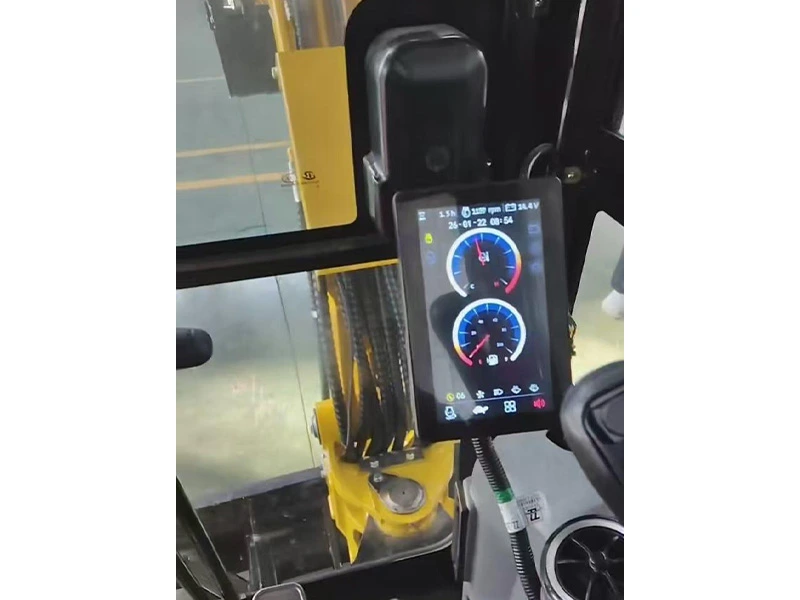

• 7-inch large touchscreen centrally displays all machine performance parameters for easy reading.

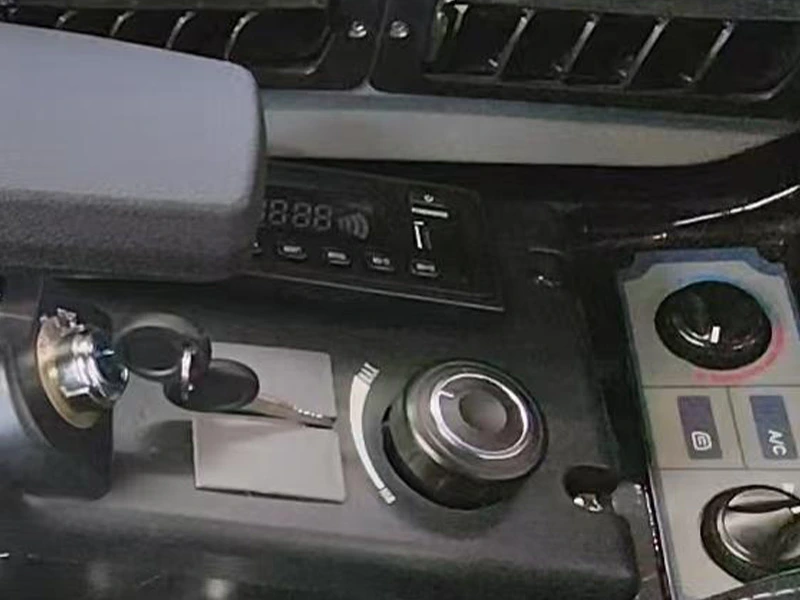

• Touchscreen control for high/low speed, work lights, and air conditioning for convenient operation

• 10-speed engine settings for precise control of engine output power, offering both convenient operation and fuel efficiency.

• Oil level, temperature, and other warning indicators

• System fault display

• Easy maintenance

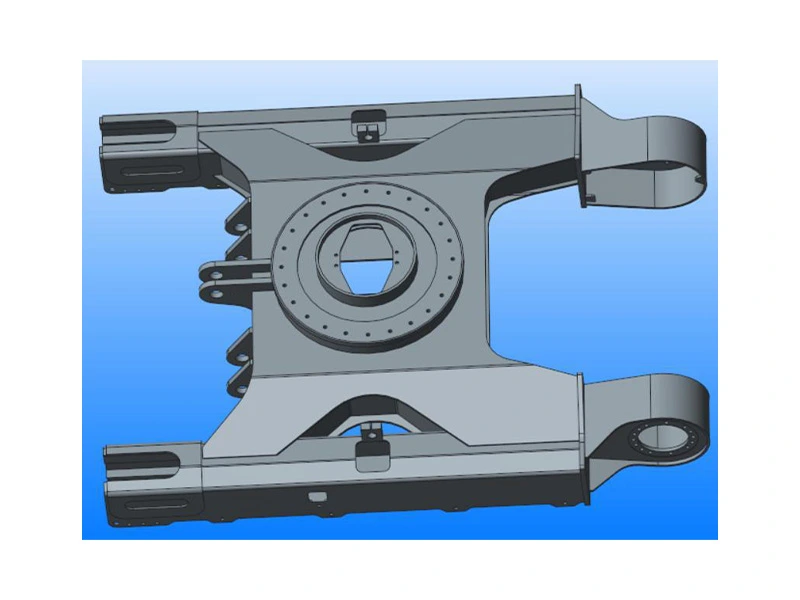

• X-shaped, fully welded, high-reliability chassis with high rigidity and stability, specifically designed for heavy-duty operations.

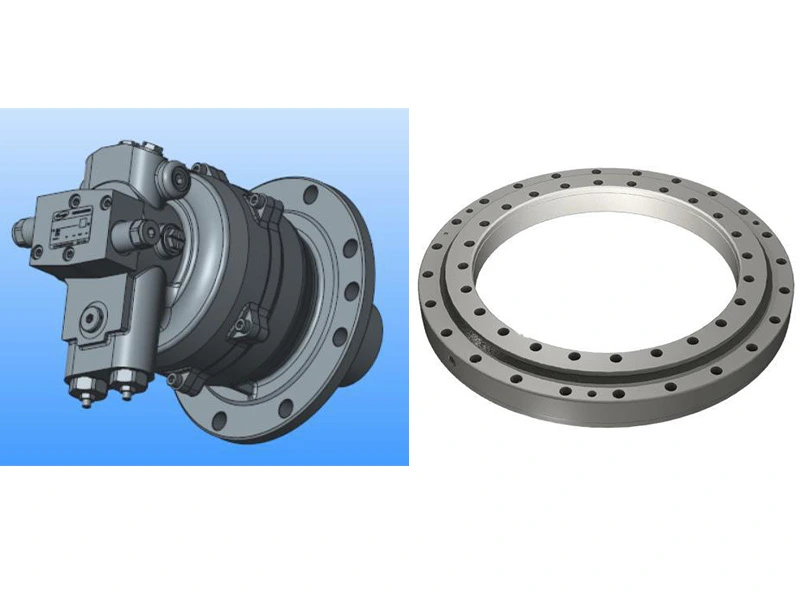

• Swing motor—Hengli, with cross-buffering design; sudden braking does not cause abrupt stops, preventing gear damage and impact on the slewing bearing. Features soft start and soft stop mechanisms.

• Slewing Bearing – Maanshan Fangyuan: Designed for heavy-duty conditions with high reliability

Travel Motor – Hengli

Large displacement, low-speed mode: Powerful hill climbing without stalling

High-speed mode: Fast travel for high site-to-site efficiency

Automatic locking upon stopping to prevent rolling

Equipped with cross-overflow cushioning to prevent gear impact, extending service life

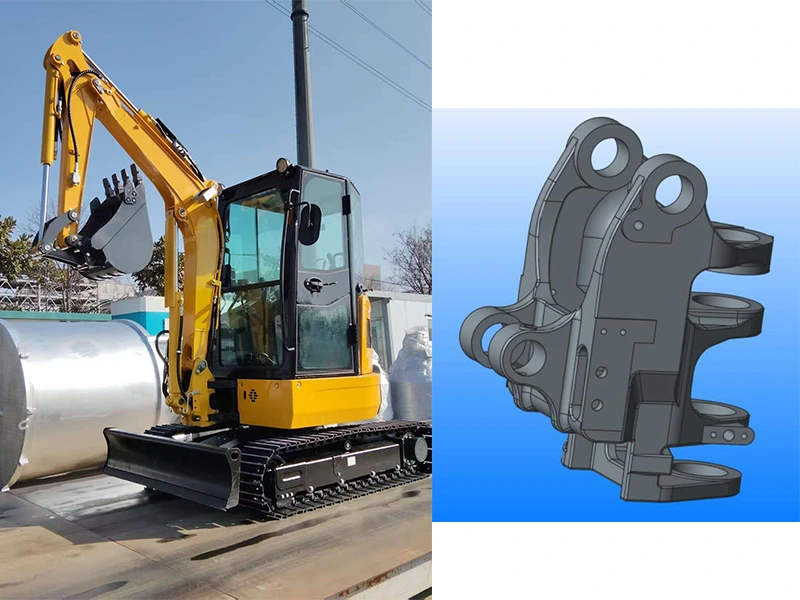

• Boom structure connectors are cast, minimizing deformation and stress to prevent cracking.

• The boom swing frame is integrally cast, offering high rigidity and resistance to cracking, suitable for heavy-duty construction environments

• Excellent durability and long service life

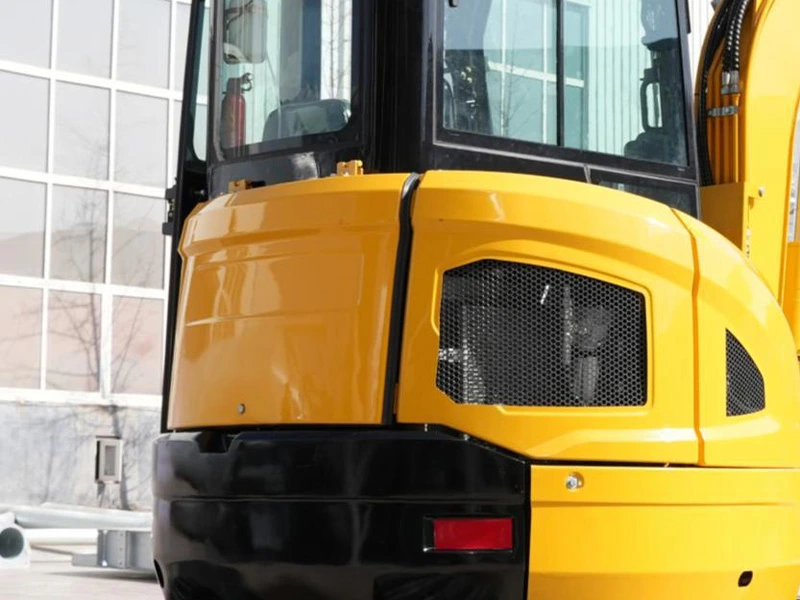

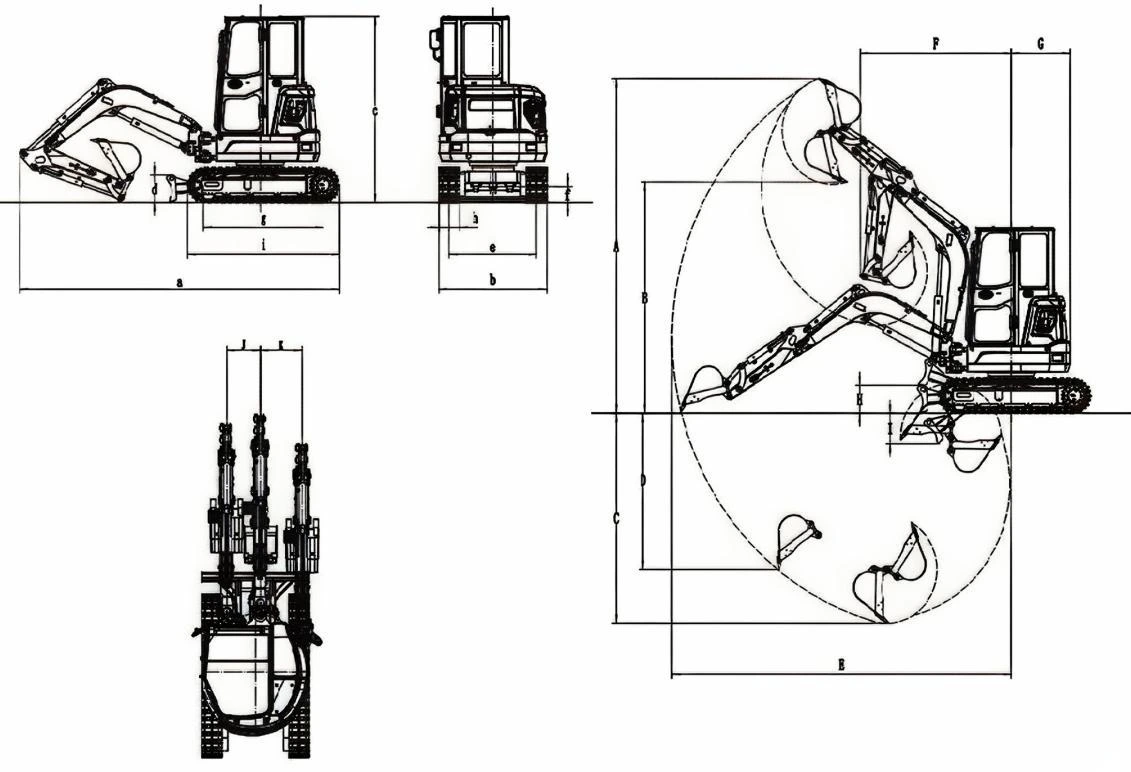

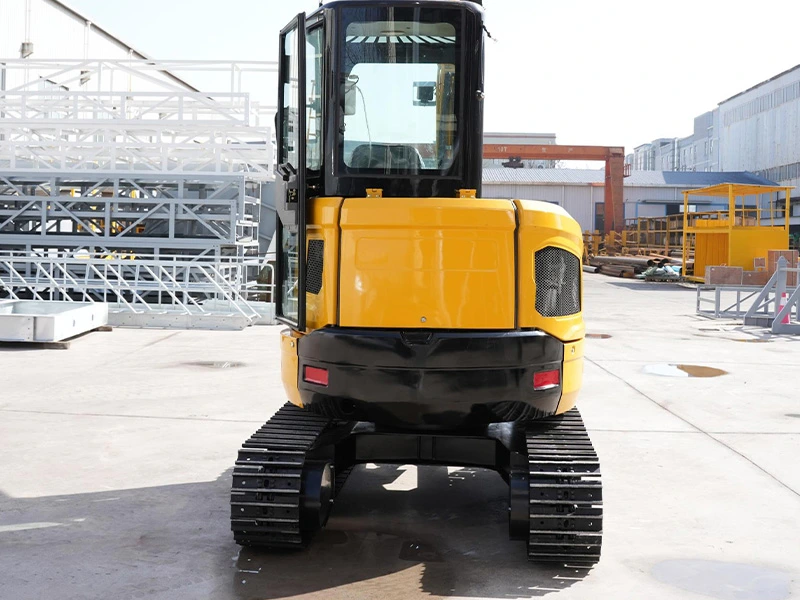

• Zero-tail swing, with a tail swing radius of 870 mm

• Overall machine width: 1580 mm

• Meets requirements for narrow work sites

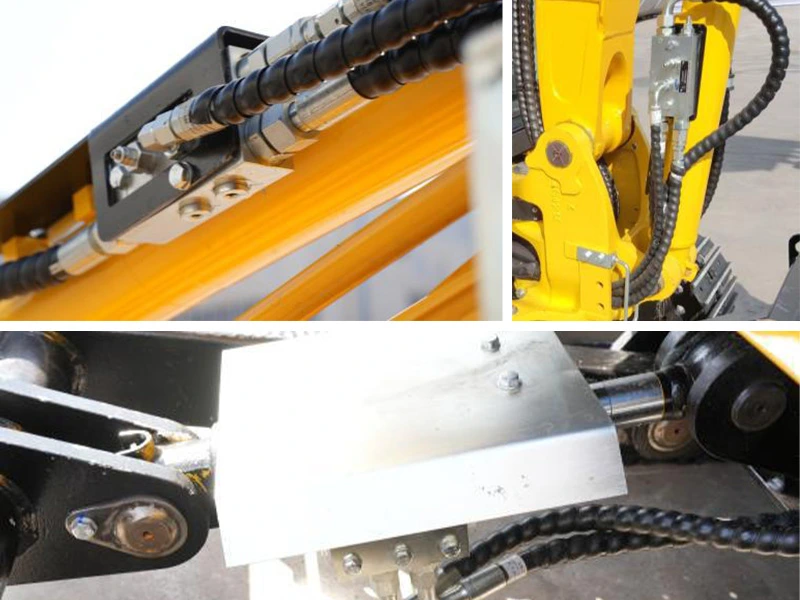

• Boom and stick are each equipped with anti-drop valves to effectively prevent the boom and stick from dropping due to hydraulic hose rupture.

• The dozer blade cylinder is equipped with a hydraulic lock valve to prevent the hydraulic blade from dropping when loading or unloading the machine

• Enhances overall machine safety

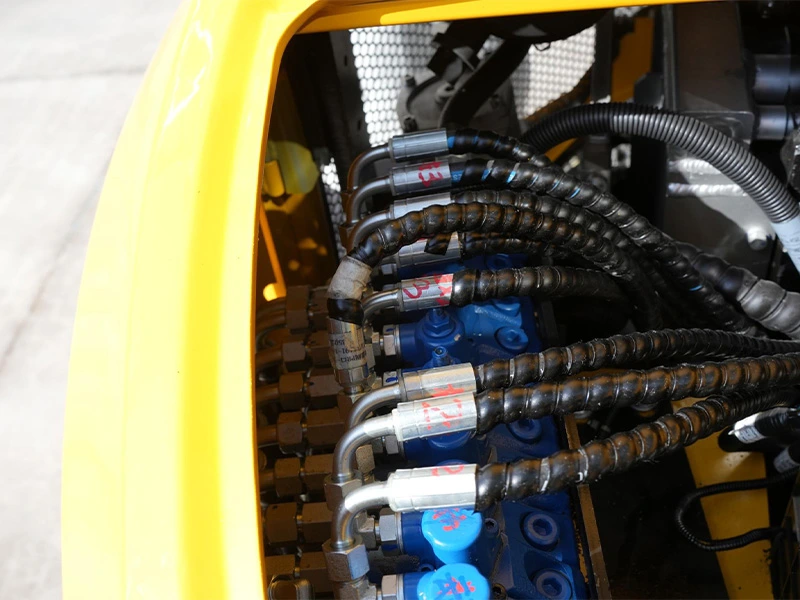

• The main control valve is mounted on the side panel of the machine, facilitating maintenance and hose replacement

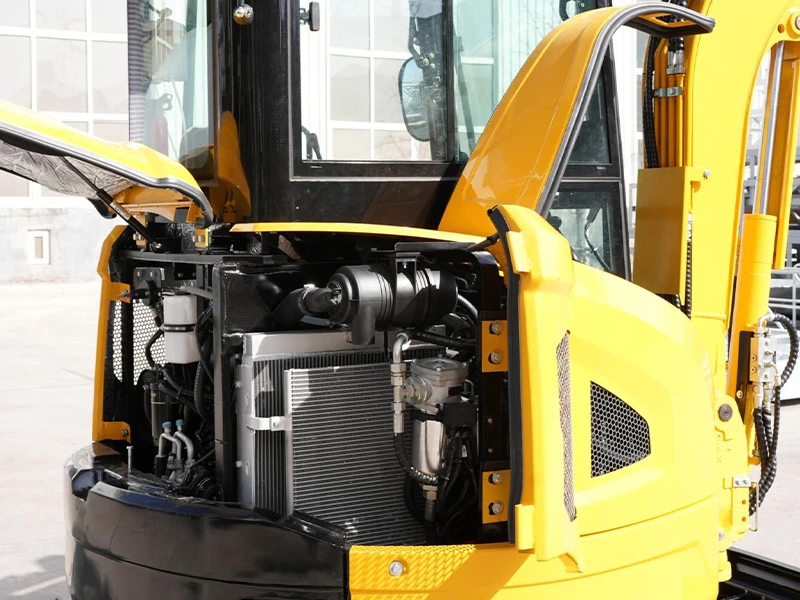

• The engine compartment, radiator, and filter compartment open fully, providing ample maintenance space

• Large fuel tank. Capacity: 52 L, sufficient for 3 days of operation

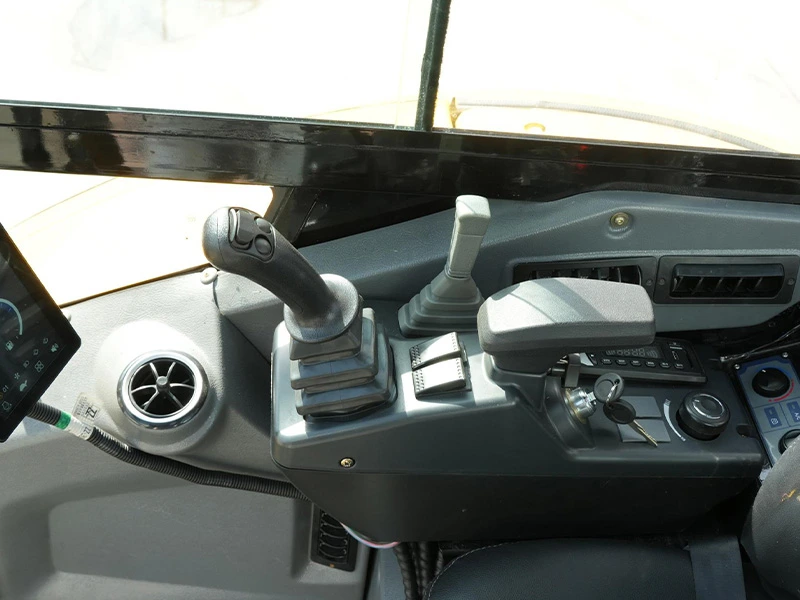

• The cab features high human-machine interaction, with simple and effortless controls.

Operators will not feel fatigued even after prolonged use

• Standard boom length: 2.1 m; standard dipper arm length: 1.2 m

• Can be customized with an extended boom (2.2 m) and extended dipper arm (1.4 m) as needed

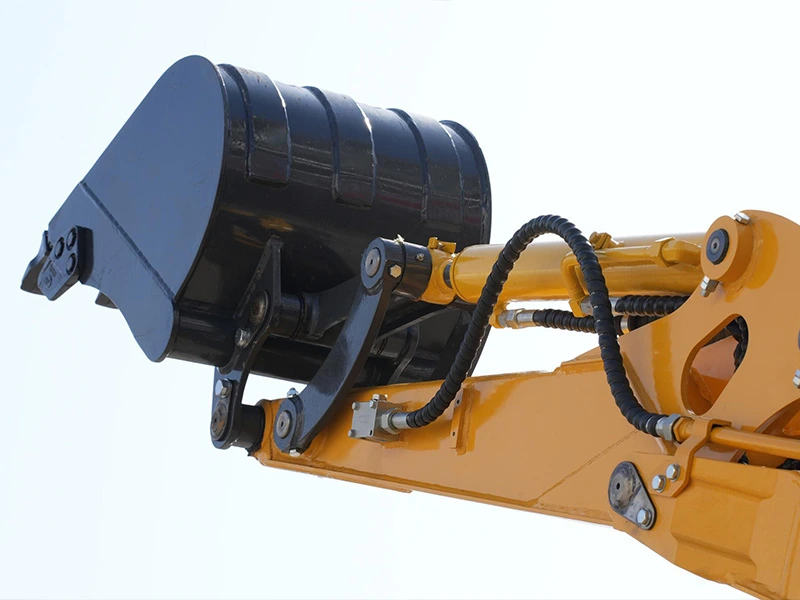

• The front work equipment can be equipped with optional bidirectional control circuit attachments, such as a rotating bucket
